NKMAX

Product Information

Product Type

Monoclonal antibody

Clone Number

k2E2

UniProt No.

P23284

NCBI Accession No.

NP_000933

Alternative names

Peptidyl-prolyl cis-trans isomerase B, Peptidylprolyl isomerase B, PPIase B, Cphn-2, Cyclophilin B, CYP-20b, CYPB, CYP-S1, OI9, Rotamase B, S-cyclophilin, SCYLP

Additional Information

This product was produced from tissue culture supernatant.

Product Specification

Host

Mouse

Reacts With

Human

Concentration

1mg/ml (determined by BCA assay)

Formulation

Liquid in. Phosphate-Buffered Saline (pH 7.4) with 0.02% Sodium Azide, 10% glycerol

Immunogen

Recombinant human Cyclophilin B (26-216aa) purified from E. coli

Isotype

IgG1 kappa

Purification

By protein-G affinity chromatography

Applications

ELISA, WB, ICC/IF

Usage

The antibody has been tested by ELISA, Western blot and ICC/IF analysis to assure specificity and reactivity. Since application varies, however, each investigation should be titrated by the reagent to obtain optimal results.

Storage

Can be stored at +2C to +8C for 1 week. For long term storage, aliquot and store at -20C to -80C. Avoid repeated freezing and thawing cycles.

Data

Immunocytochemistry/Immunofluorescence (ICC/IF)

Magnify

ICC/IF analysis of Cyclophilin B in Hep3B cells. The cell was stained with ATGA0545 (1:100). The secondary antibody (green) was used Alexa Fluor 488. DAPI was stained the cell nucleus (blue).

Western blot analysis (WB)

Magnify

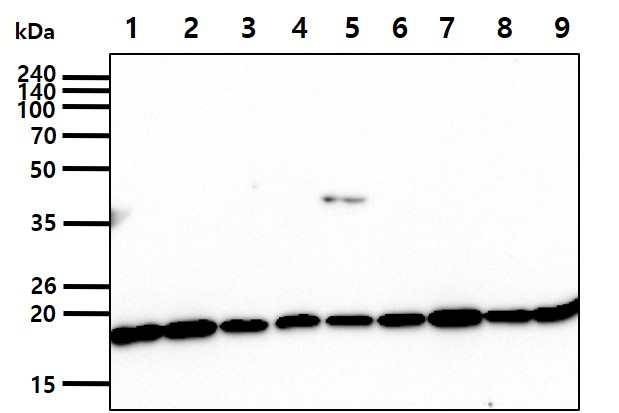

The cell lysates (40ug) were resolved by SDS-PAGE, transferred to PVDF membrane and probed with anti-human Cyclophilin B antibody (1:1000). Proteins were visualized using a goat anti-mouse secondary antibody conjugated to HRP and an ECL detection system.
Lane 1.: HepG2 cell lysate
Lane 2.: HeLa cell lysate
Lane 3.: Jurkate cell lysate
Lane 4.: K562 cell lysate
Lane 5.: 293T cell lysate
Lane 6.: A549 cell lysate
Lane 7.: MCF7 cell lysate
Lane 8.: sk-ov-3 cell lysate
Lane 9.: LnCap cell lysate

Magnify

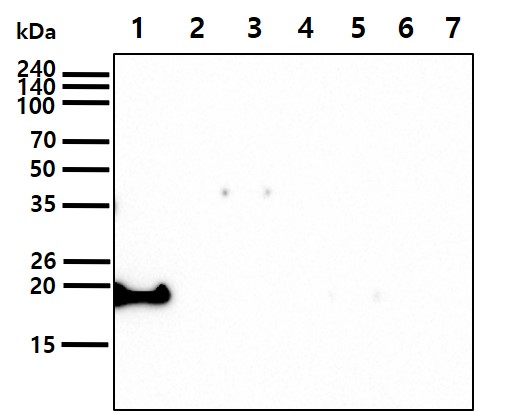

The Recombinant protein (50ng) were resolved by SDS-PAGE, transferred to PVDF membrane and probed with anti-human Cyclophilin B antibody (1:1000). Proteins were visualized using a goat anti-mouse secondary antibody conjugated to HRP and an ECL detection system.
Lane 1.: Recombinant human PPIB Protein
Lane 2.: Recombinant human PPIA Protein
Lane 3.: Recombinant human PPID Protein
Lane 4.: Recombinant human PPIE Protein
Lane 5.: Recombinant human PPIF Protein
Lane 6.: Recombinant human PPIG Protein
Lane 7.: Recombinant human PPIH Protein

Related Publications

Choi JW, et al. Severe osteogenesis imperfecta in cyclophilin B-deficient mice. (PLoS Genet. 2009)
Dubnikov T, et al. PrP-containing aggresomes are cytosolic components of an ER quality control mechanism. (J Cell Sci. 2016)
Mukadam AS, et al. Analysis of novel endosome-to-Golgi retrieval genes reveals a role for PLD3 in regulating endosomal protein sorting and amyloid precursor protein processing. (Cell Mol Life Sci. 2018)
